NTPsec

scratchy

Report generated: Fri Sep 22 04:15:04 2023 UTC
Start Time: Thu Sep 21 04:15:04 2023 UTC
End Time: Fri Sep 22 04:15:04 2023 UTC
Report Period: 1.0 days

Local Clock Time/Frequency Offsets

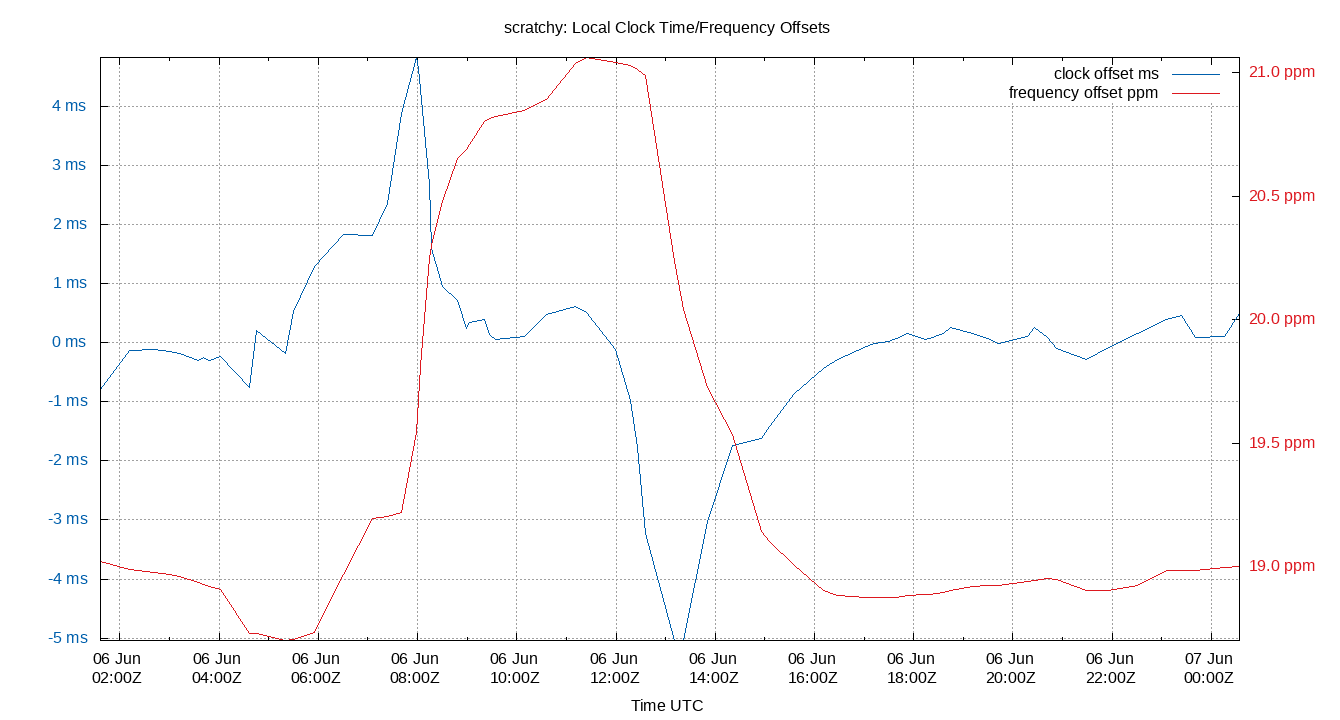

local offset plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Time Offset -985.146 -985.146 -759.463 61.522 566.740 796.187 796.187 1,326.203 1,781.333 429.192 -23.154 µs -4.677 11.42
Local Clock Frequency Offset -3.586 -3.586 -3.547 -3.163 -2.806 -2.796 -2.796 0.741 0.790 0.246 -3.159 ppm -2686 3.773e+04

The time and frequency offsets between the ntpd calculated time and the local system clock. Showing frequency offset (red, in parts per million, scale on right) and the time offset (blue, in μs, scale on left). Quick changes in time offset will lead to larger frequency offsets.

These are fields 3 (time) and 4 (frequency) from the loopstats log file.



Local RMS Time Jitter

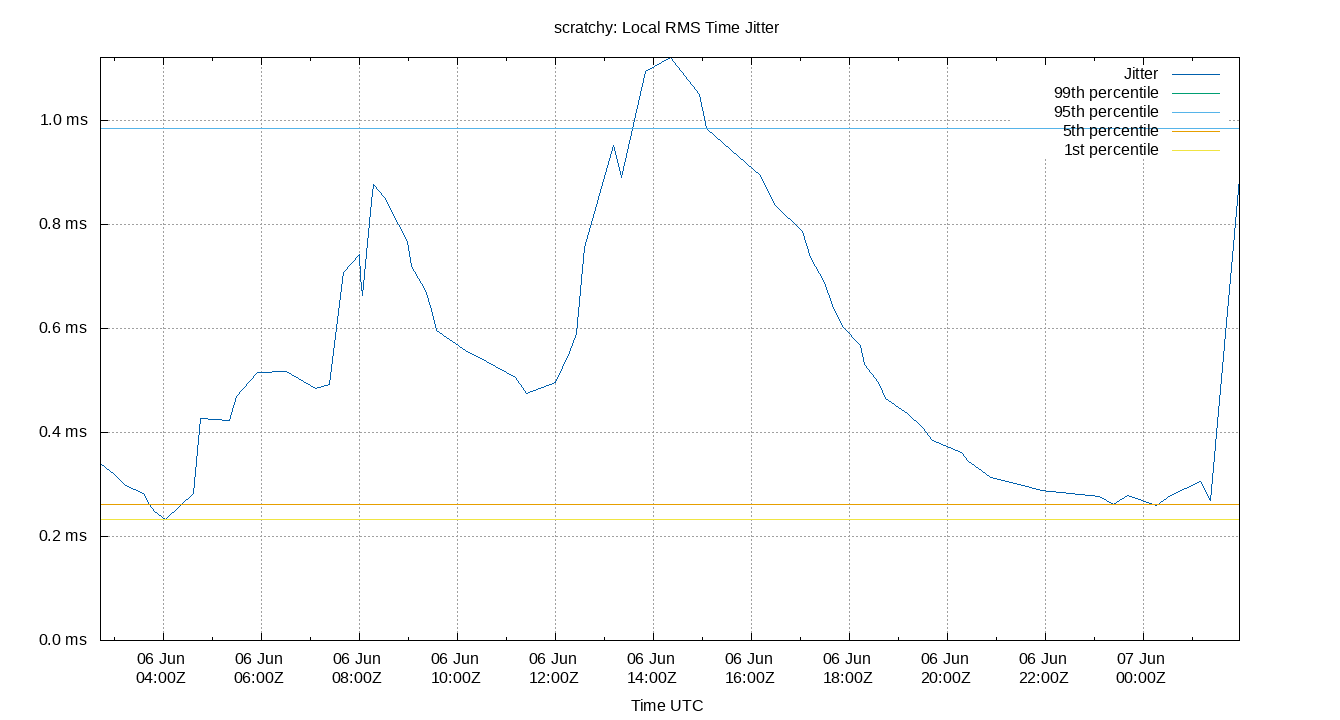

local jitter plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Time Jitter 164.788 164.788 180.652 230.961 316.259 350.473 350.473 135.607 185.685 43.150 238.396 µs 106.8 555.4

The RMS Jitter of the local clock offset. In other words, how fast the local clock offset is changing.

Lower is better. An ideal system would be a horizontal line at 0μs.

RMS jitter is field 5 in the loopstats log file.



Local RMS Frequency Jitter

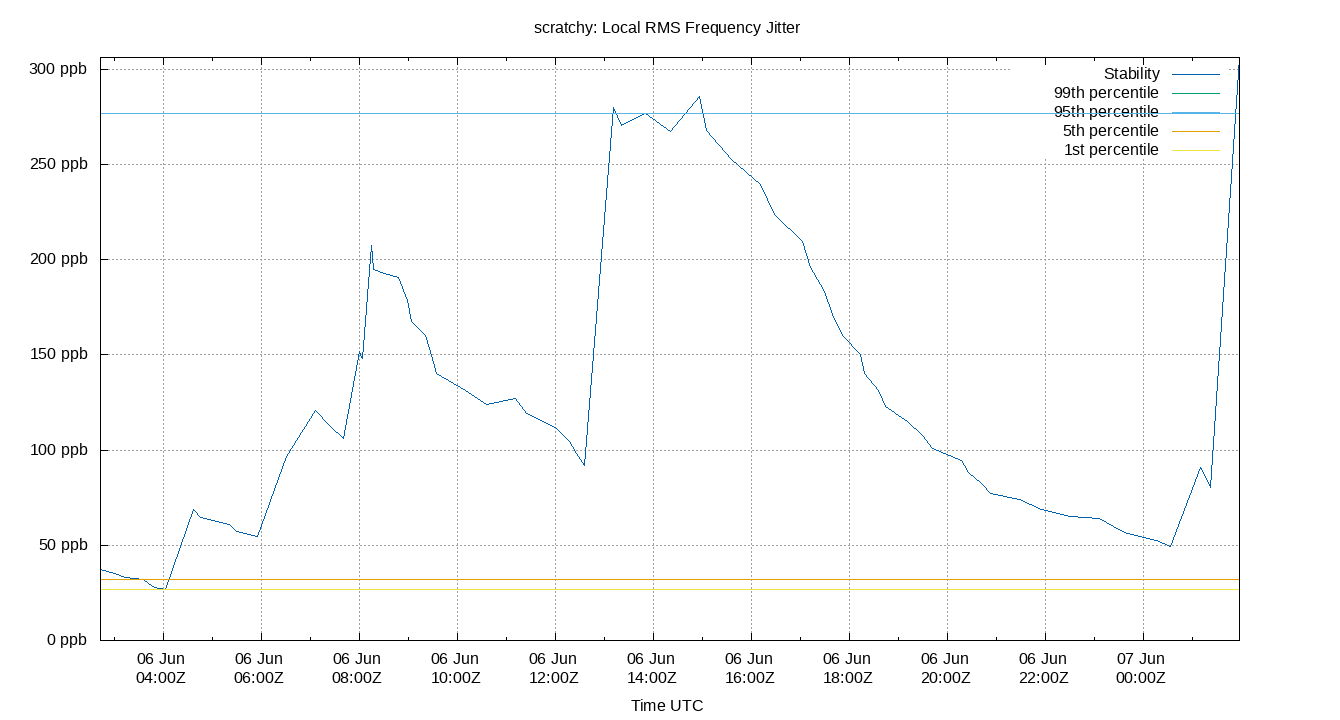

local stability plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Frequency Jitter 14.692 14.692 16.031 27.870 49.427 58.525 58.525 33.396 43.833 9.167 28.302 ppb 16.51 59.39

The RMS Frequency Jitter (aka wander) of the local clock's frequency. In other words, how fast the local clock changes frequency.

Lower is better. An ideal clock would be a horizontal line at 0ppm.

RMS Frequency Jitter is field 6 in the loopstats log file.



Local Clock Time Offset Histogram

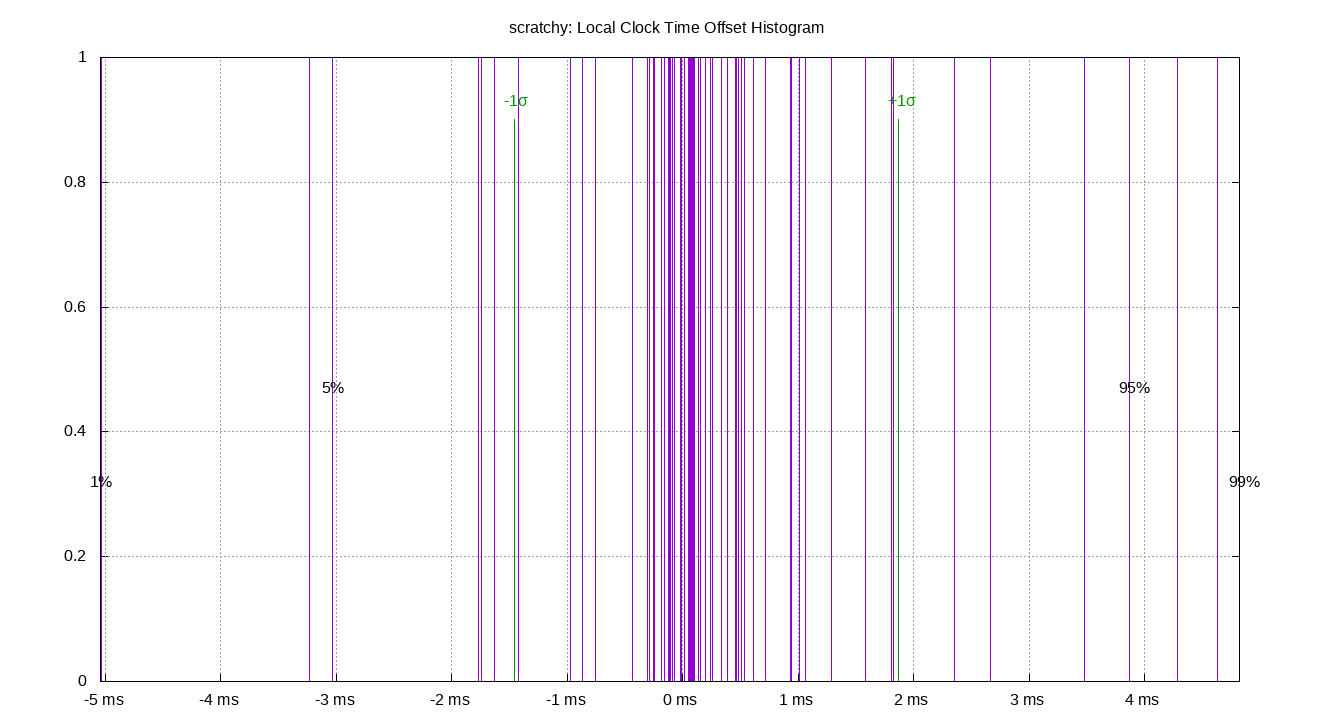

local offset histogram plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Offset -985.146 -985.146 -759.463 61.522 566.740 796.187 796.187 1,326.203 1,781.333 429.192 -23.154 µs -4.677 11.42

The clock offsets of the local clock as a histogram.

The Local Clock Offset is field 3 from the loopstats log file.



Server Offsets

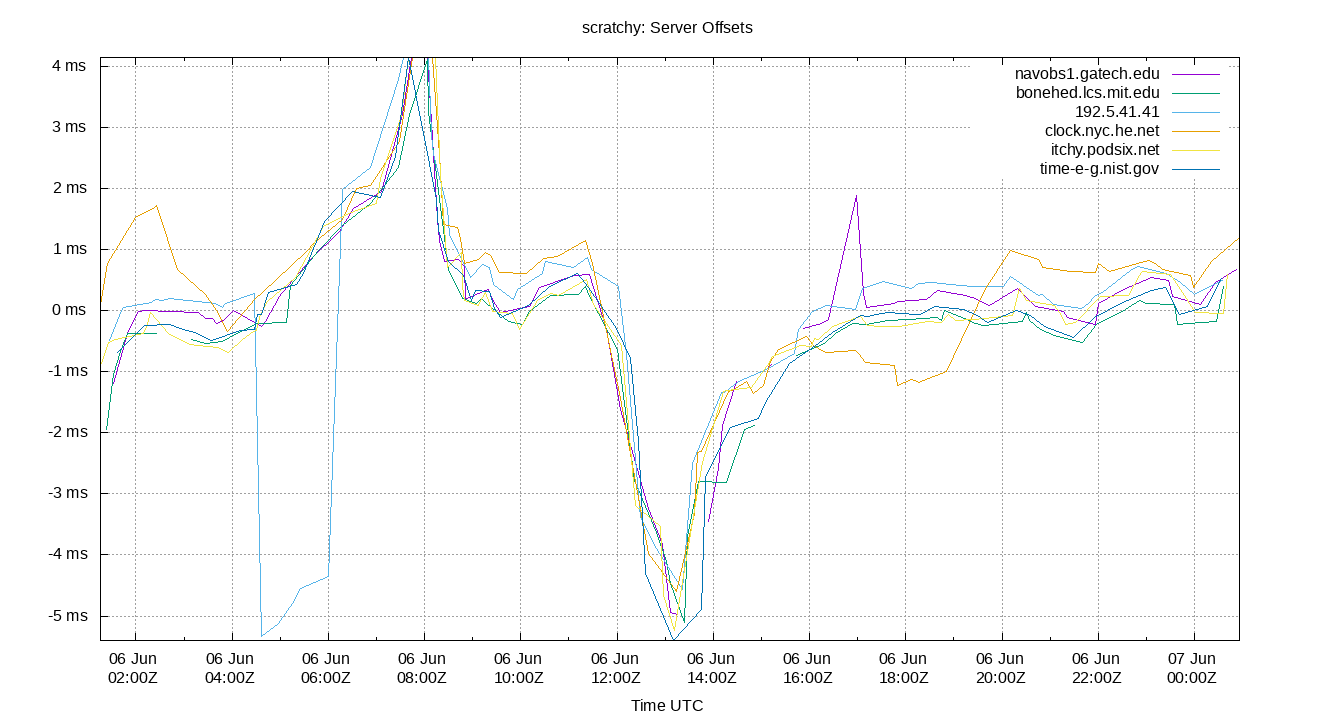

peer offsets plot

The offset of all refclocks and servers. This can be useful to see if offset changes are happening in a single clock or all clocks together.

Clock Offset is field 5 in the peerstats log file.



Server Offset 130.207.244.240

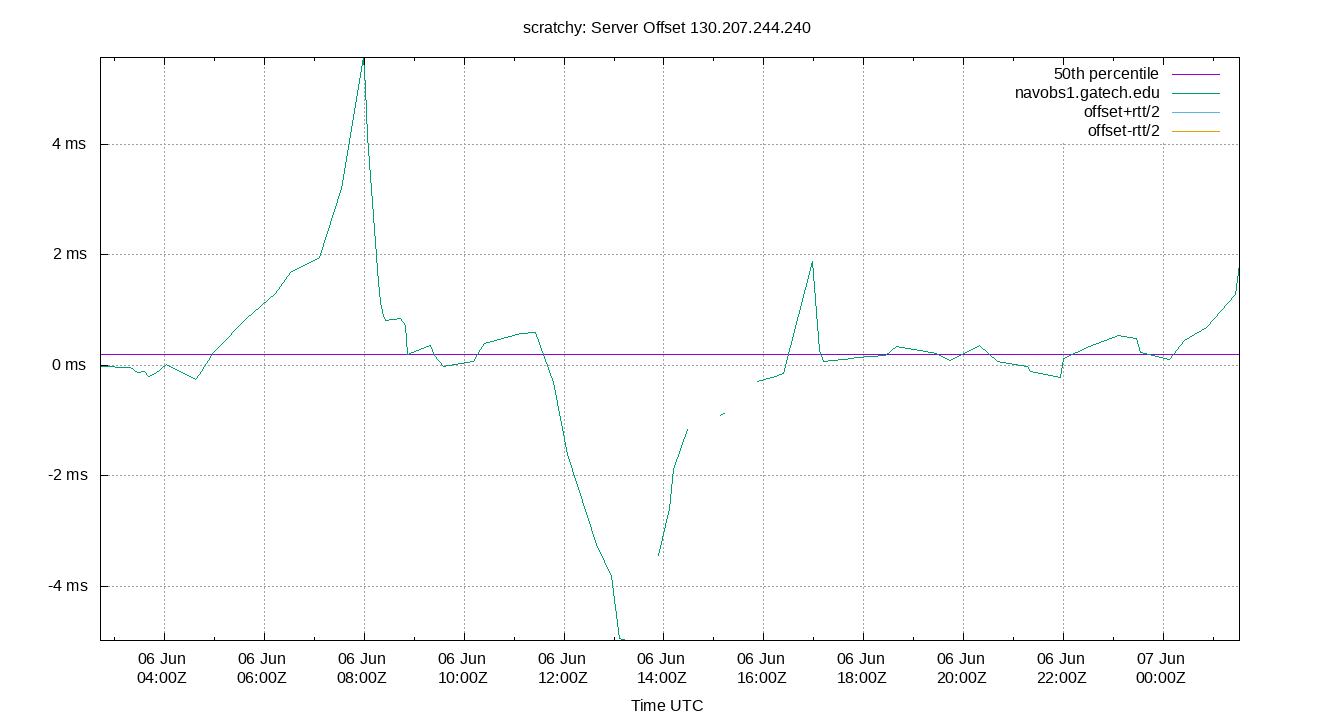

peer offset 130.207.244.240 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 130.207.244.240 -749.161 -749.161 -614.248 -5.518 537.799 708.769 708.769 1,152.047 1,457.930 386.401 -34.111 µs -4.673 10.91

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 18.26.4.105

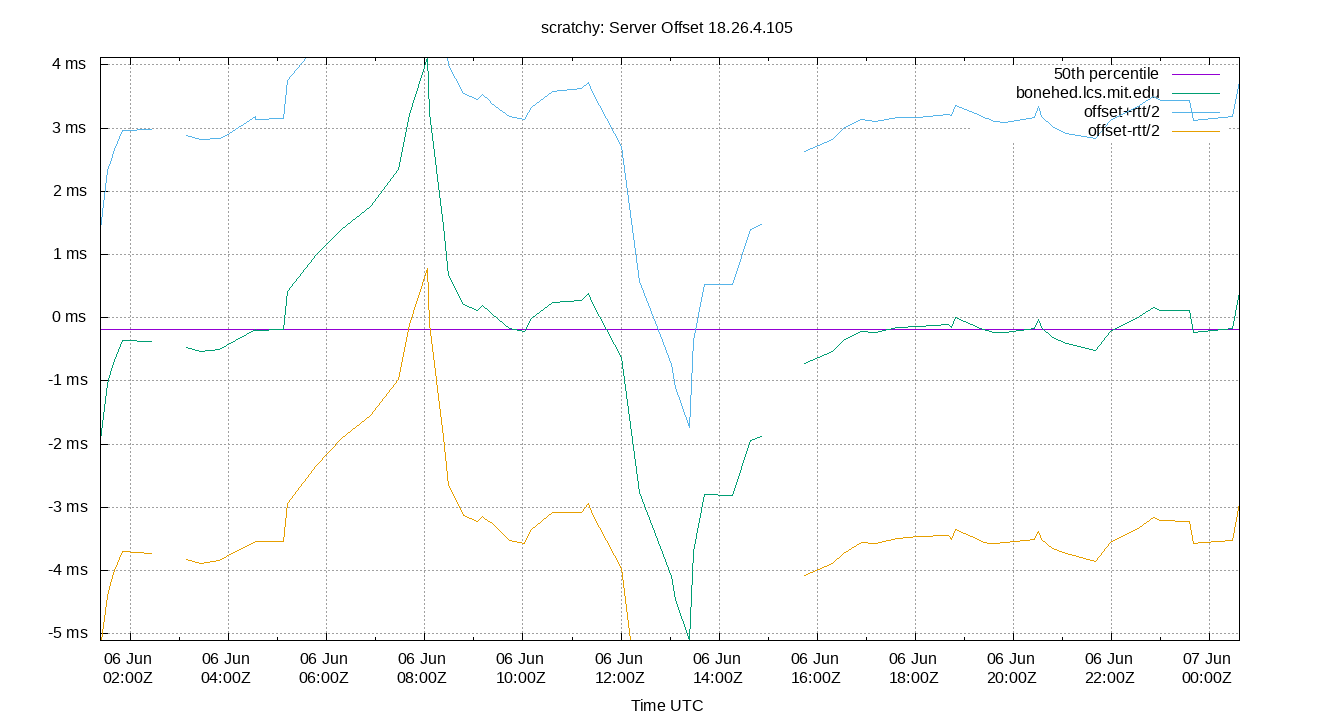

peer offset 18.26.4.105 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 18.26.4.105 -0.168 -0.168 -0.101 0.541 1.111 1.228 1.228 1.213 1.395 0.369 0.520 ms 1.232 3.011

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 192.5.41.41

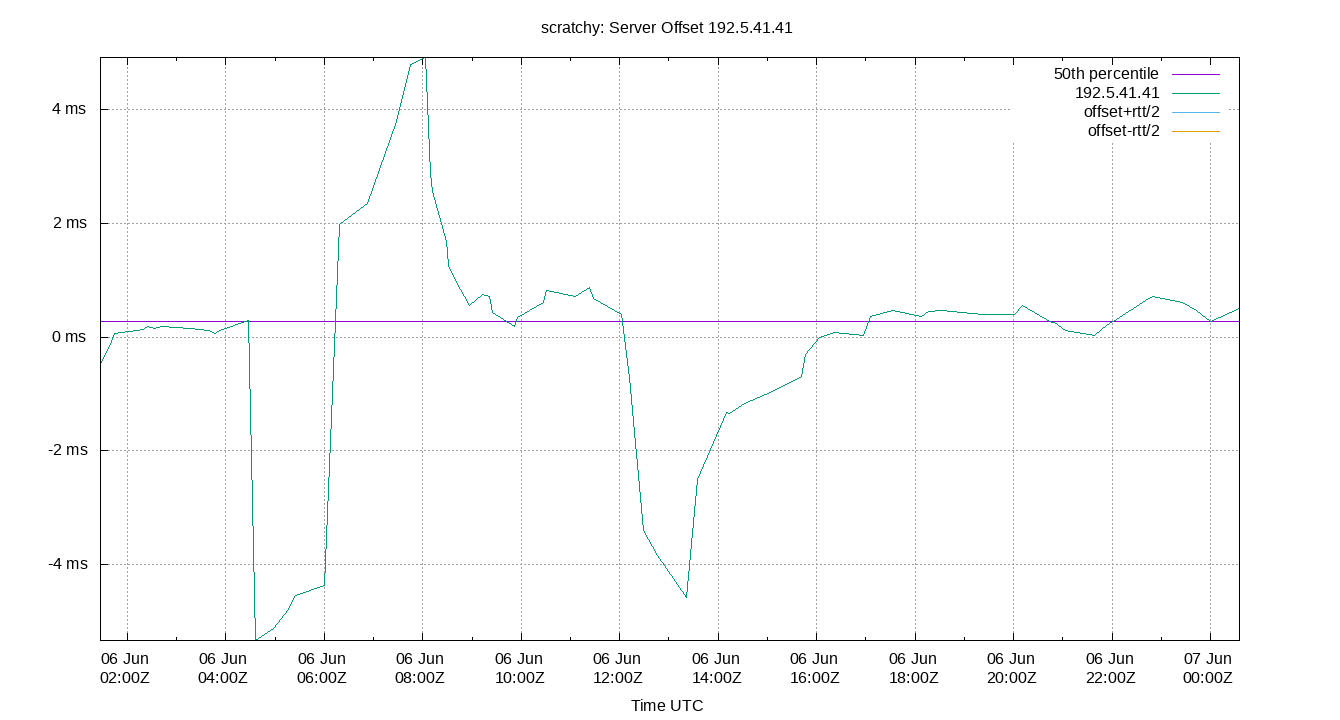

peer offset 192.5.41.41 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 192.5.41.41 -2.251 -2.251 -2.158 -1.548 -1.015 -0.776 -0.776 1.144 1.475 0.375 -1.560 ms -153.1 873.8

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 2001:470:0:2c8::2 (clock.nyc.he.net)

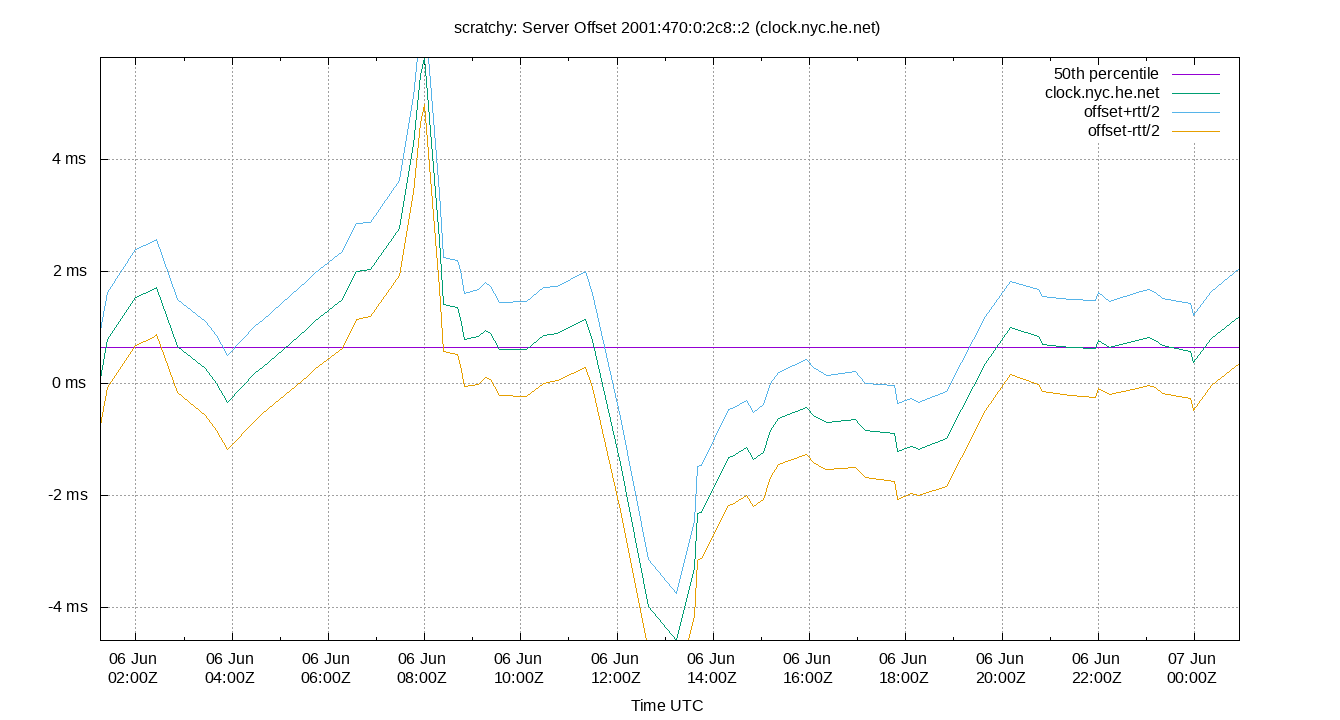

peer offset 2001:470:0:2c8::2 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2001:470:0:2c8::2 (clock.nyc.he.net) -2.010 -2.010 -1.878 -1.116 -0.052 0.050 0.050 1.826 2.060 0.506 -1.036 ms -37.16 140.8

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 2604:a880:2:d1::116:d001 (itchy.podsix.net)

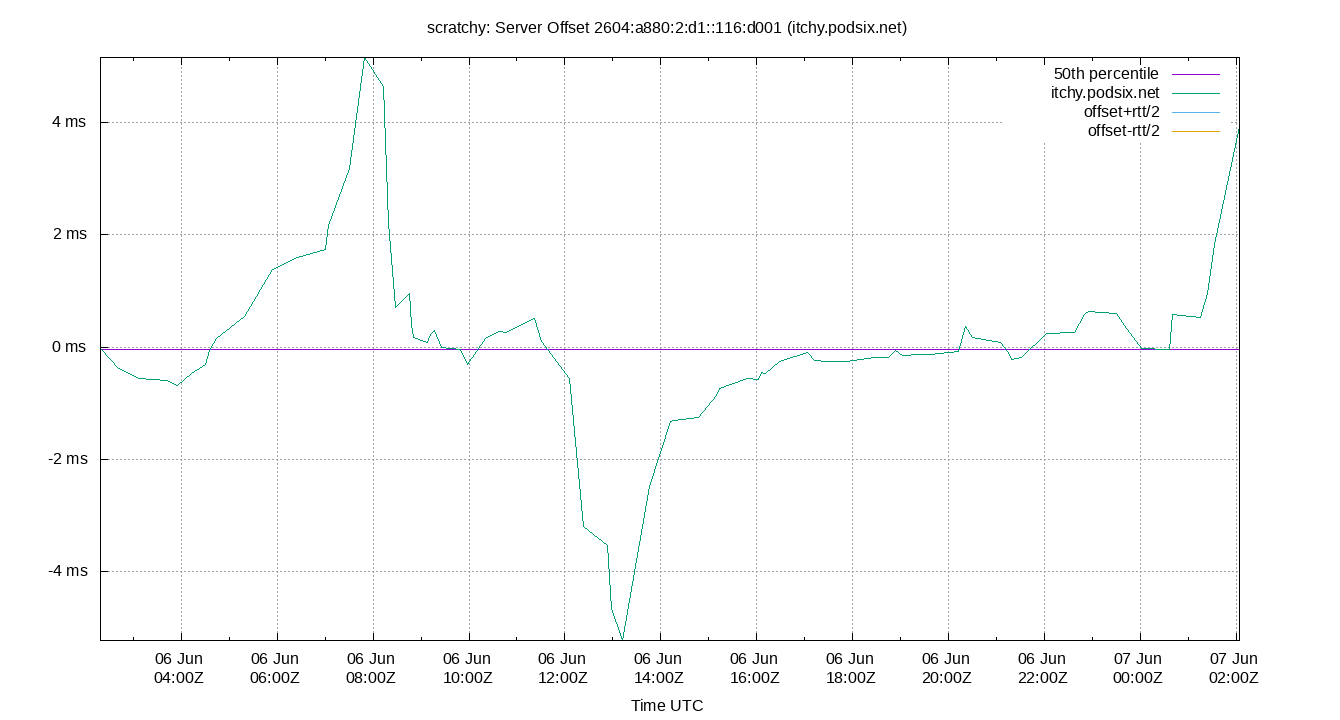

peer offset 2604:a880:2:d1::116:d001 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2604:a880:2:d1::116:d001 (itchy.podsix.net) -2.559 -2.559 -1.480 1.442 2.895 3.810 3.810 4.375 6.369 1.280 1.100 ms -1.22 4.146

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 2610:20:6f15:15::26 (time-e-g.nist.gov)

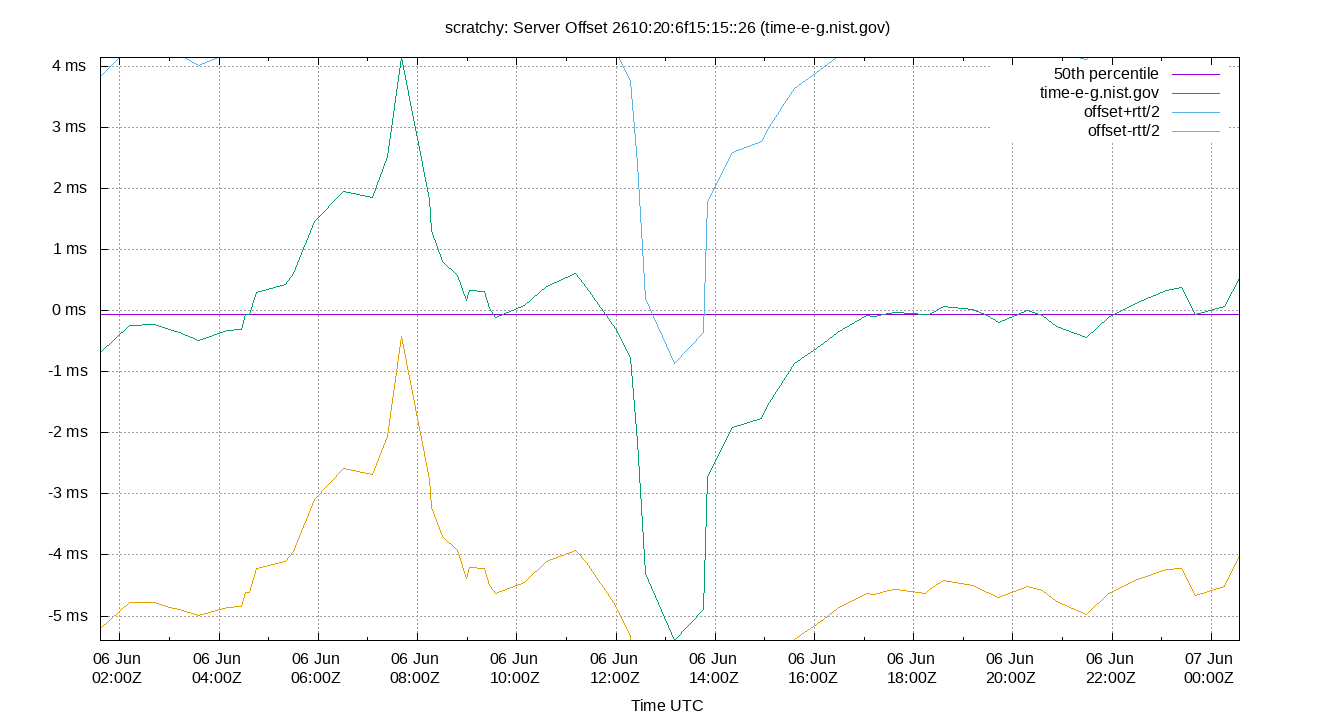

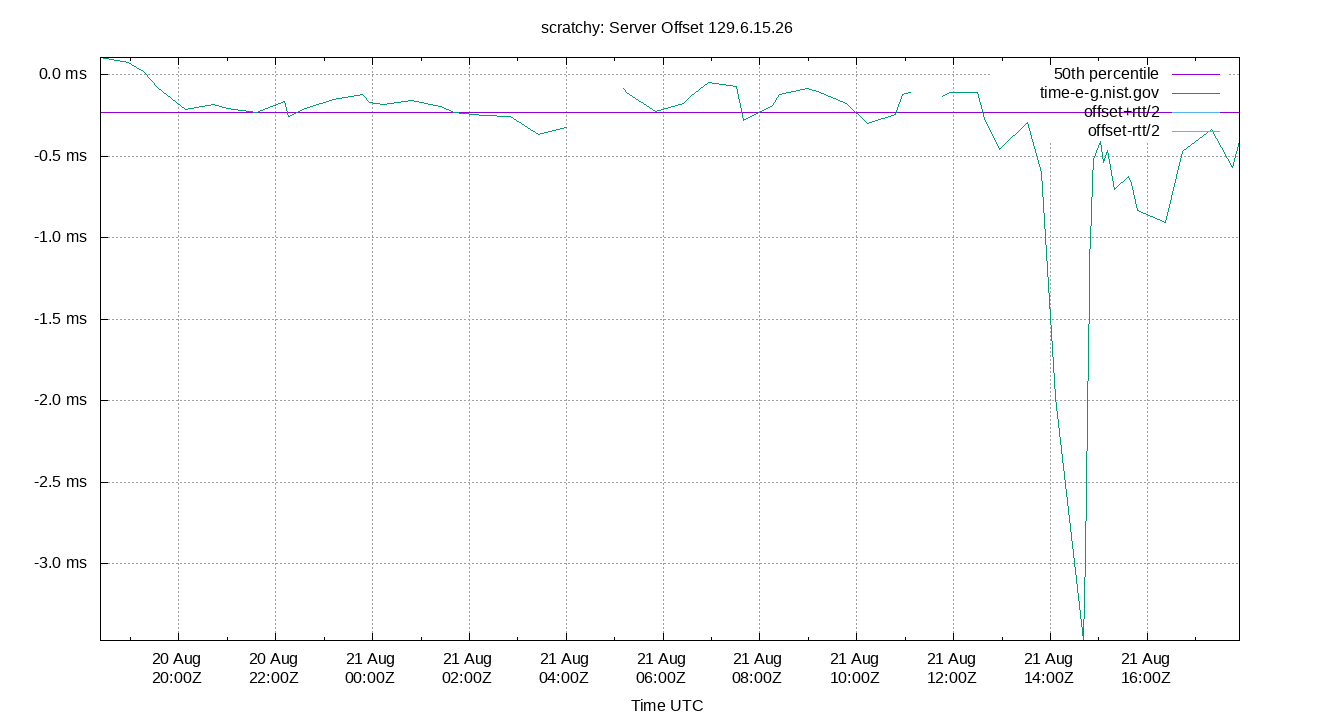

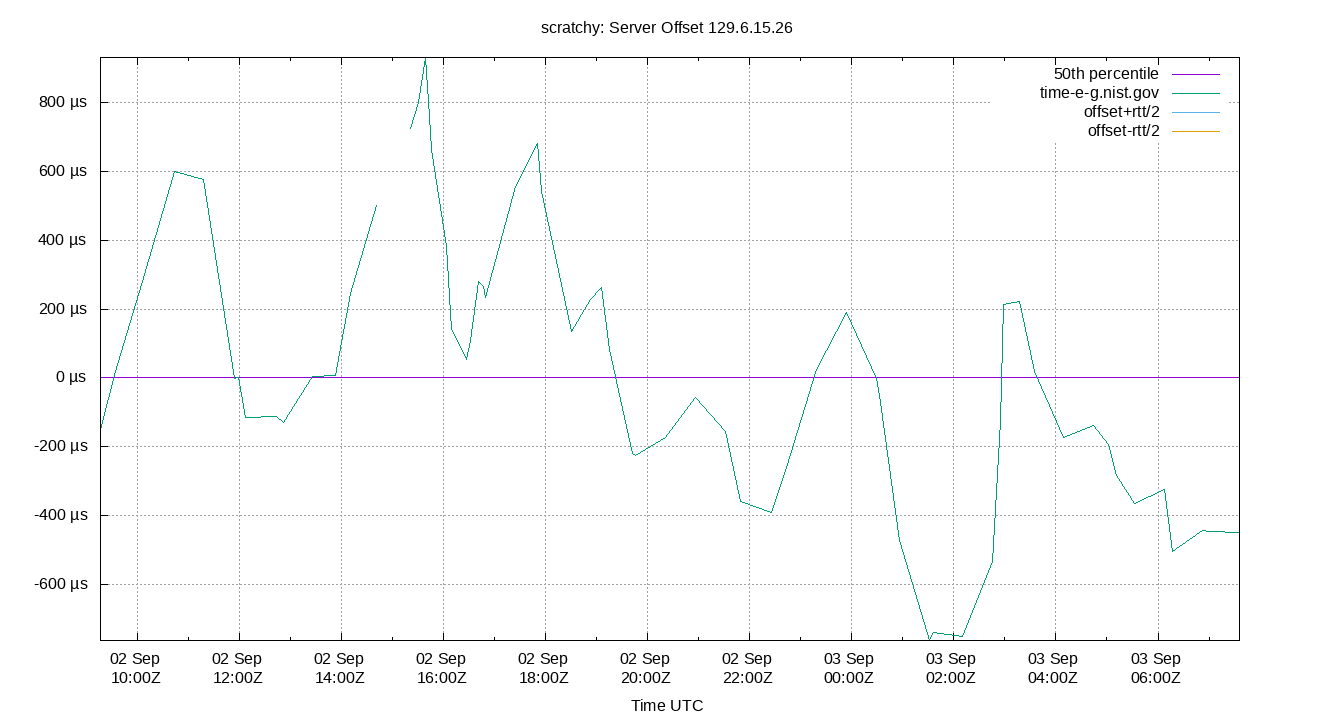

peer offset 2610:20:6f15:15::26 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2610:20:6f15:15::26 (time-e-g.nist.gov) -0.373 -0.373 -0.287 0.558 1.275 1.522 1.522 1.562 1.894 0.493 0.529 ms 0.1936 2.031

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Jitters

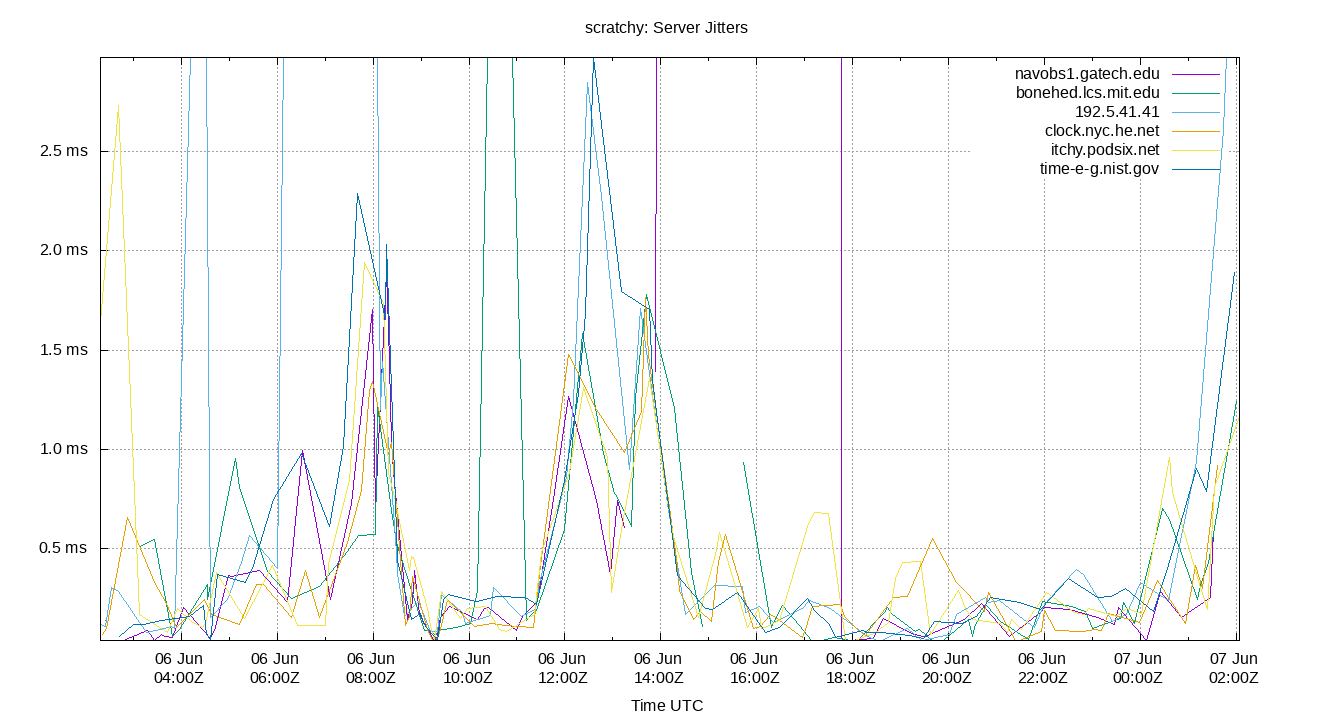

peer jitters plot

The RMS Jitter of all refclocks and servers. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 130.207.244.240

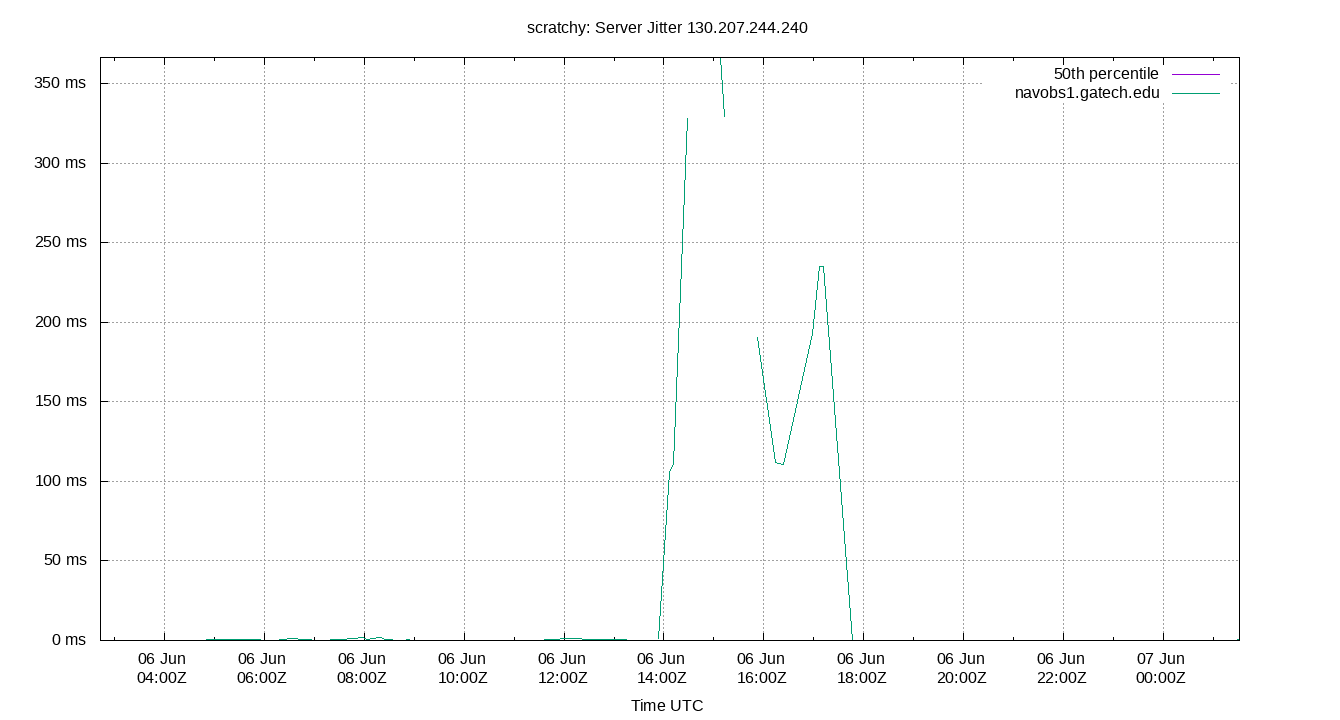

peer jitter 130.207.244.240 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 130.207.244.240 79.795 79.795 101.309 220.310 487.006 751.792 751.792 385.697 671.997 122.737 238.179 µs 5.324 19.25

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 18.26.4.105

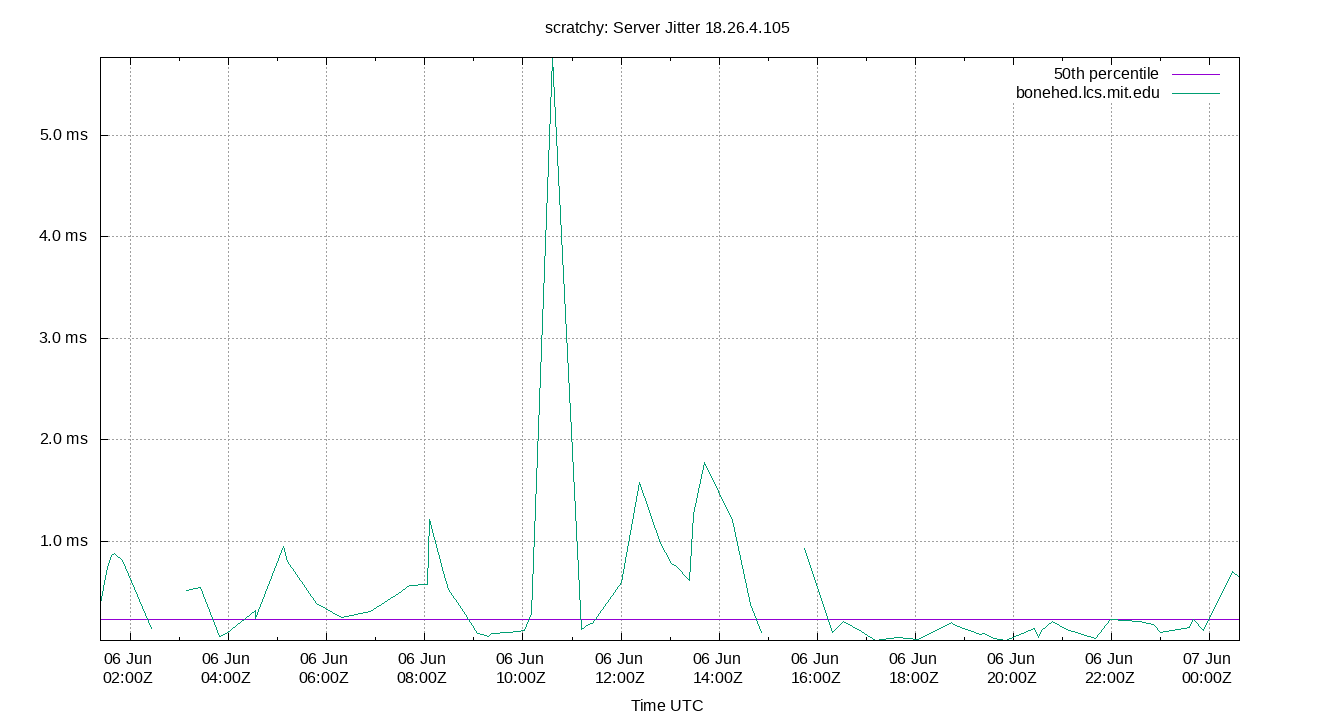

peer jitter 18.26.4.105 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 18.26.4.105 39.554 39.554 50.517 124.847 434.746 501.115 501.115 384.229 461.561 113.673 163.709 µs 2.755 7.645

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 192.5.41.41

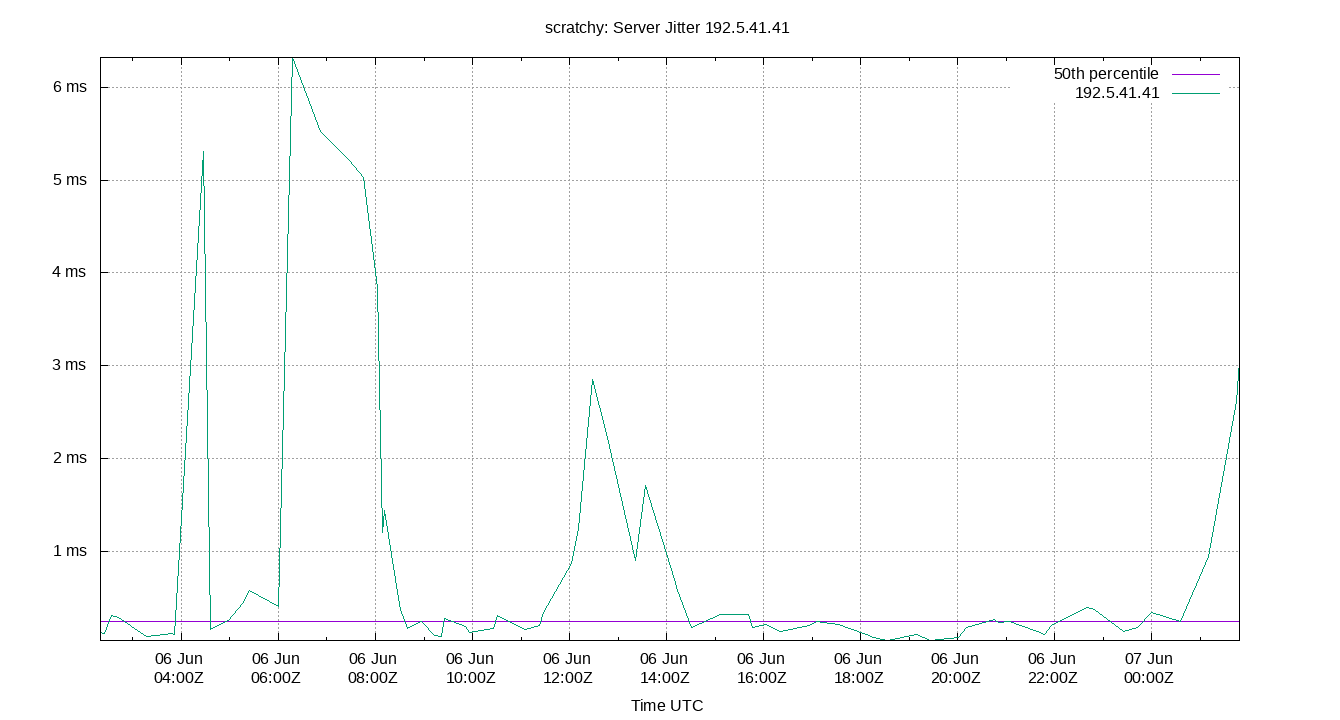

peer jitter 192.5.41.41 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 192.5.41.41 0.051 0.051 0.098 0.356 0.621 2.268 2.268 0.523 2.216 0.414 0.422 ms 3.713 16.67

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 2001:470:0:2c8::2 (clock.nyc.he.net)

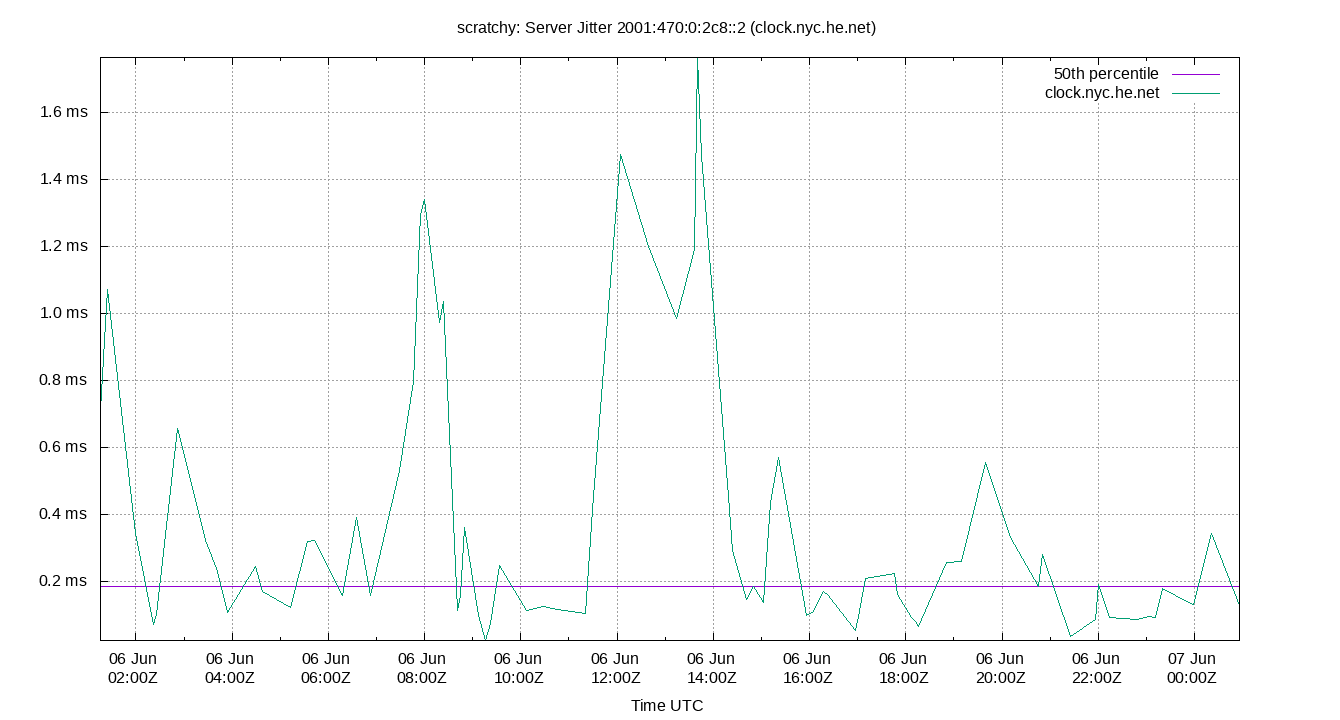

peer jitter 2001:470:0:2c8::2 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2001:470:0:2c8::2 (clock.nyc.he.net) 0.032 0.032 0.053 0.171 0.881 1.119 1.119 0.829 1.088 0.232 0.250 ms 2.519 8.822

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 2604:a880:2:d1::116:d001 (itchy.podsix.net)

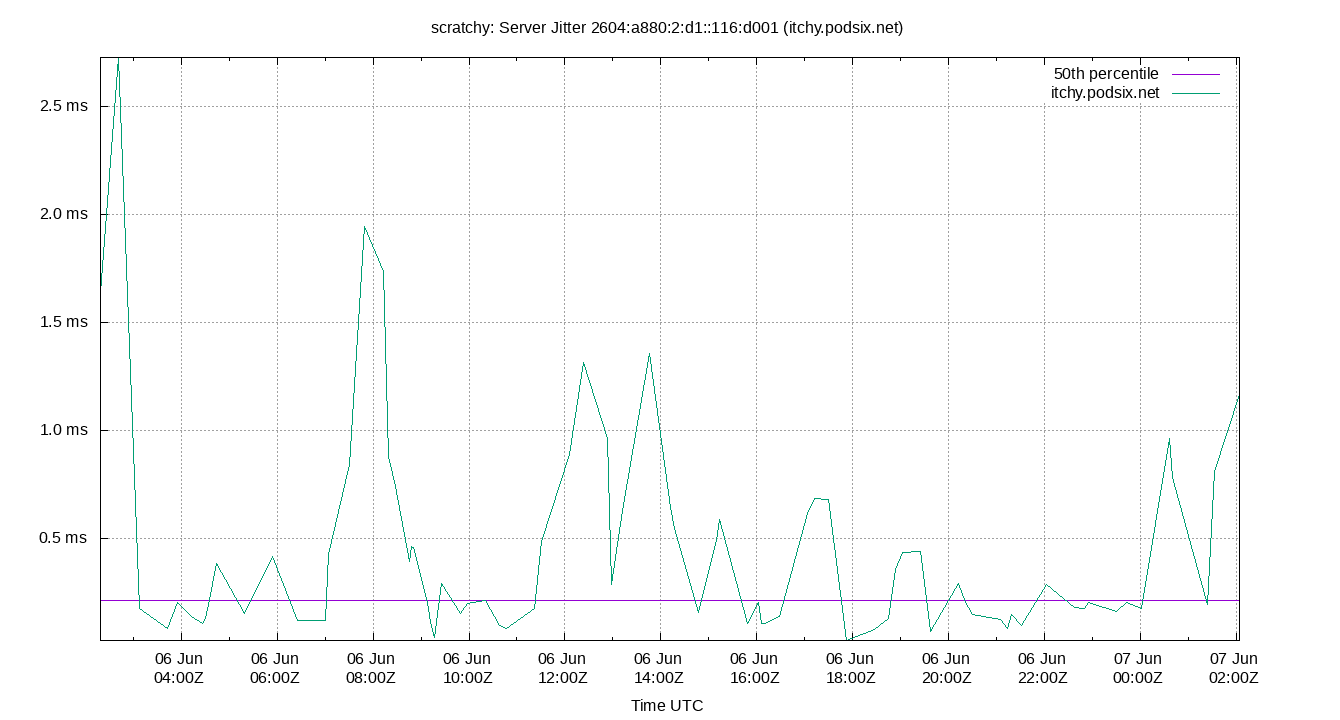

peer jitter 2604:a880:2:d1::116:d001 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2604:a880:2:d1::116:d001 (itchy.podsix.net) 0.107 0.107 0.402 0.929 1.883 59.963 59.963 1.481 59.856 6.267 1.663 ms 6.546 61.77

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 2610:20:6f15:15::26 (time-e-g.nist.gov)

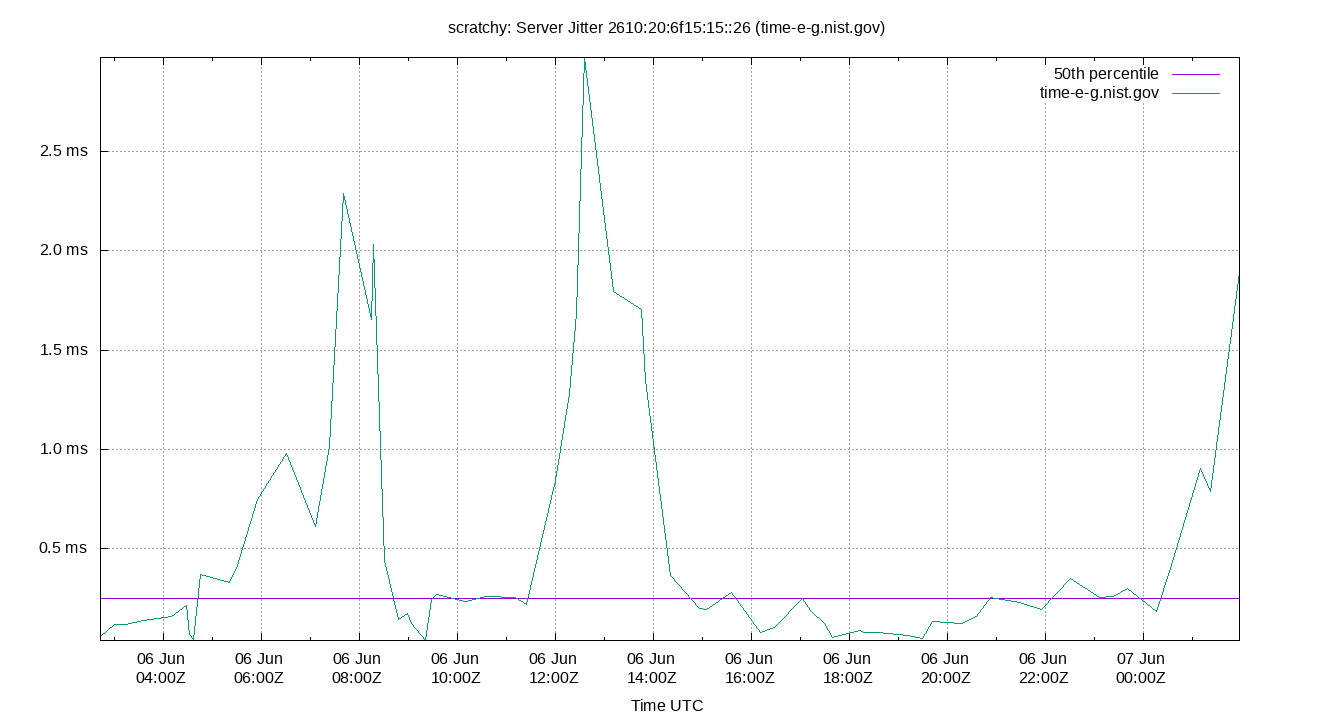

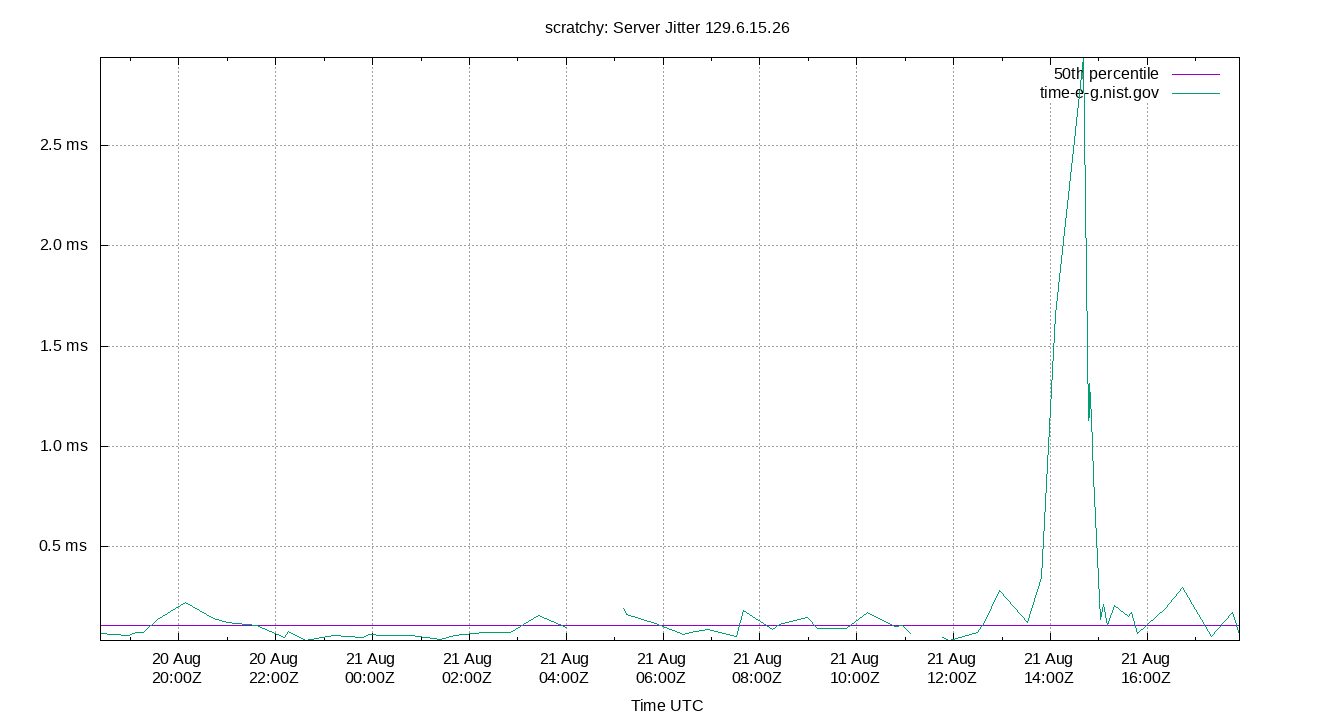

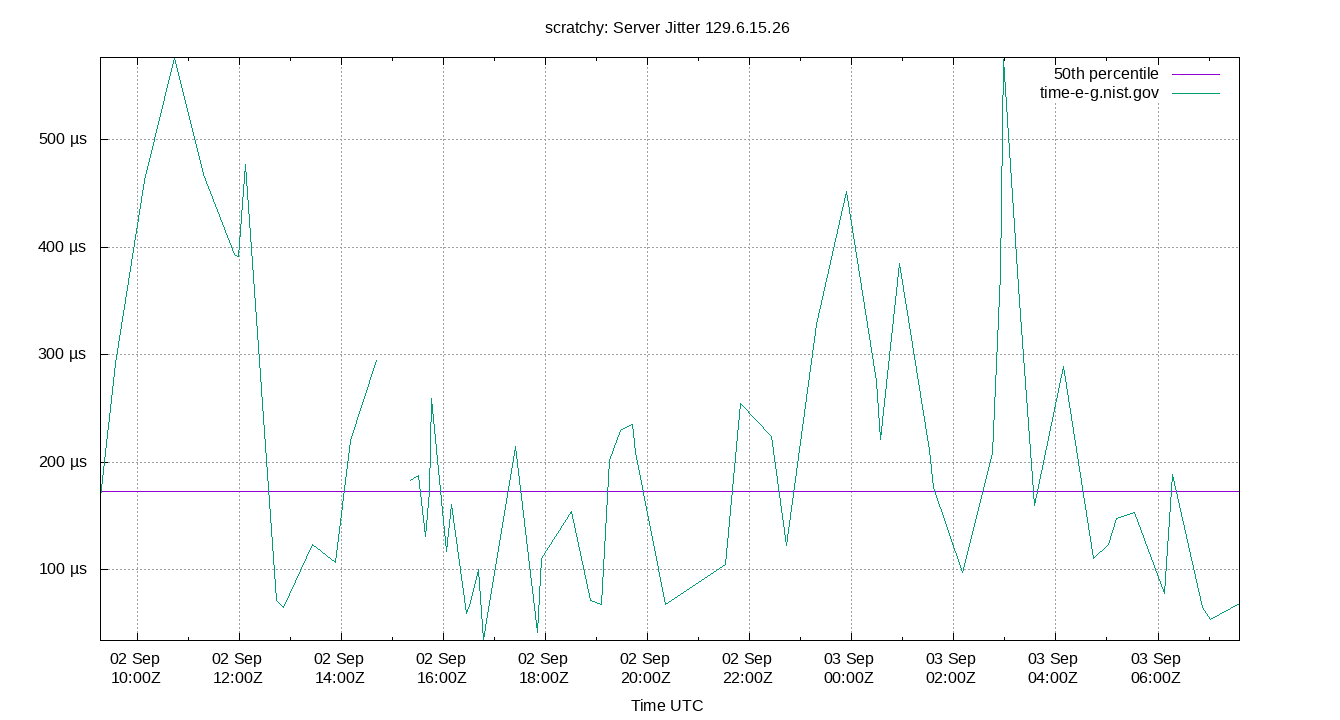

peer jitter 2610:20:6f15:15::26 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2610:20:6f15:15::26 (time-e-g.nist.gov) 107.558 107.558 120.184 271.810 658.344 710.388 710.388 538.160 602.830 153.754 300.444 µs 4.854 14

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Summary


Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset -3.586 -3.586 -3.547 -3.163 -2.806 -2.796 -2.796 0.741 0.790 0.246 -3.159 ppm -2686 3.773e+04
Local Clock Time Offset -985.146 -985.146 -759.463 61.522 566.740 796.187 796.187 1,326.203 1,781.333 429.192 -23.154 µs -4.677 11.42
Local RMS Frequency Jitter 14.692 14.692 16.031 27.870 49.427 58.525 58.525 33.396 43.833 9.167 28.302 ppb 16.51 59.39
Local RMS Time Jitter 164.788 164.788 180.652 230.961 316.259 350.473 350.473 135.607 185.685 43.150 238.396 µs 106.8 555.4
Server Jitter 130.207.244.240 79.795 79.795 101.309 220.310 487.006 751.792 751.792 385.697 671.997 122.737 238.179 µs 5.324 19.25
Server Jitter 18.26.4.105 39.554 39.554 50.517 124.847 434.746 501.115 501.115 384.229 461.561 113.673 163.709 µs 2.755 7.645
Server Jitter 192.5.41.41 0.051 0.051 0.098 0.356 0.621 2.268 2.268 0.523 2.216 0.414 0.422 ms 3.713 16.67
Server Jitter 2001:470:0:2c8::2 (clock.nyc.he.net) 0.032 0.032 0.053 0.171 0.881 1.119 1.119 0.829 1.088 0.232 0.250 ms 2.519 8.822
Server Jitter 2604:a880:2:d1::116:d001 (itchy.podsix.net) 0.107 0.107 0.402 0.929 1.883 59.963 59.963 1.481 59.856 6.267 1.663 ms 6.546 61.77
Server Jitter 2610:20:6f15:15::26 (time-e-g.nist.gov) 107.558 107.558 120.184 271.810 658.344 710.388 710.388 538.160 602.830 153.754 300.444 µs 4.854 14
Server Offset 130.207.244.240 -749.161 -749.161 -614.248 -5.518 537.799 708.769 708.769 1,152.047 1,457.930 386.401 -34.111 µs -4.673 10.91
Server Offset 18.26.4.105 -0.168 -0.168 -0.101 0.541 1.111 1.228 1.228 1.213 1.395 0.369 0.520 ms 1.232 3.011
Server Offset 192.5.41.41 -2.251 -2.251 -2.158 -1.548 -1.015 -0.776 -0.776 1.144 1.475 0.375 -1.560 ms -153.1 873.8
Server Offset 2001:470:0:2c8::2 (clock.nyc.he.net) -2.010 -2.010 -1.878 -1.116 -0.052 0.050 0.050 1.826 2.060 0.506 -1.036 ms -37.16 140.8
Server Offset 2604:a880:2:d1::116:d001 (itchy.podsix.net) -2.559 -2.559 -1.480 1.442 2.895 3.810 3.810 4.375 6.369 1.280 1.100 ms -1.22 4.146
Server Offset 2610:20:6f15:15::26 (time-e-g.nist.gov) -0.373 -0.373 -0.287 0.558 1.275 1.522 1.522 1.562 1.894 0.493 0.529 ms 0.1936 2.031
Summary as CSV file

Glossary:

frequency offset:
The difference between the ntpd calculated frequency and the local system clock frequency (usually in parts per million, ppm)
jitter, dispersion:
The short term change in a value. NTP measures Local Time Jitter, Refclock Jitter, and Server Jitter in seconds. Local Frequency Jitter is in ppm or ppb.
kurtosis, Kurt:
The kurtosis of a random variable X is the fourth standardized moment and is a dimension-less ratio. ntpviz uses the Pearson's moment coefficient of kurtosis. A normal distribution has a kurtosis of three. NIST describes a kurtosis over three as "heavy tailed" and one under three as "light tailed".
ms, millisecond:
One thousandth of a second = 0.001 seconds, 1e-3 seconds
mu, mean:
The arithmetic mean: the sum of all the values divided by the number of values. The formula for mu is: "mu = (∑xi) / N". Where xi denotes the data points and N is the number of data points.
ns, nanosecond:
One billionth of a second, also one thousandth of a microsecond, 0.000000001 seconds and 1e-9 seconds.
percentile:
The value below which a given percentage of values fall.
ppb, parts per billion:
Ratio between two values. These following are all the same: 1 ppb, one in one billion, 1/1,000,000,000, 0.000,000,001, 1e-9 and 0.000,000,1%
ppm, parts per million:
Ratio between two values. These following are all the same: 1 ppm, one in one million, 1/1,000,000, 0.000,001, and 0.000,1%
‰, parts per thousand:
Ratio between two values. These following are all the same: 1 ‰. one in one thousand, 1/1,000, 0.001, and 0.1%
refclock:
Reference clock, a local GPS module or other local source of time.
remote clock:
Any clock reached over the network, LAN or WAN. Also called a peer or server.
time offset:
The difference between the ntpd calculated time and the local system clock's time. Also called phase offset.
σ, sigma:
Sigma denotes the standard deviation (SD) and is centered on the arithmetic mean of the data set. The SD is simply the square root of the variance of the data set. Two sigma is simply twice the standard deviation. Three sigma is three times sigma. Smaller is better.
The formula for sigma is: "σ = √[ ∑(xi-mu)^2 / N ]". Where xi denotes the data points and N is the number of data points.
skewness, Skew:
The skewness of a random variable X is the third standardized moment and is a dimension-less ratio. ntpviz uses the Pearson's moment coefficient of skewness. Wikipedia describes it best: "The qualitative interpretation of the skew is complicated and unintuitive."
A normal distribution has a skewness of zero.
upstream clock:
Any server or reference clock used as a source of time.
µs, us, microsecond:
One millionth of a second, also one thousandth of a millisecond, 0.000,001 seconds, and 1e-6 seconds.



This page autogenerated by ntpviz, part of the NTPsec project
